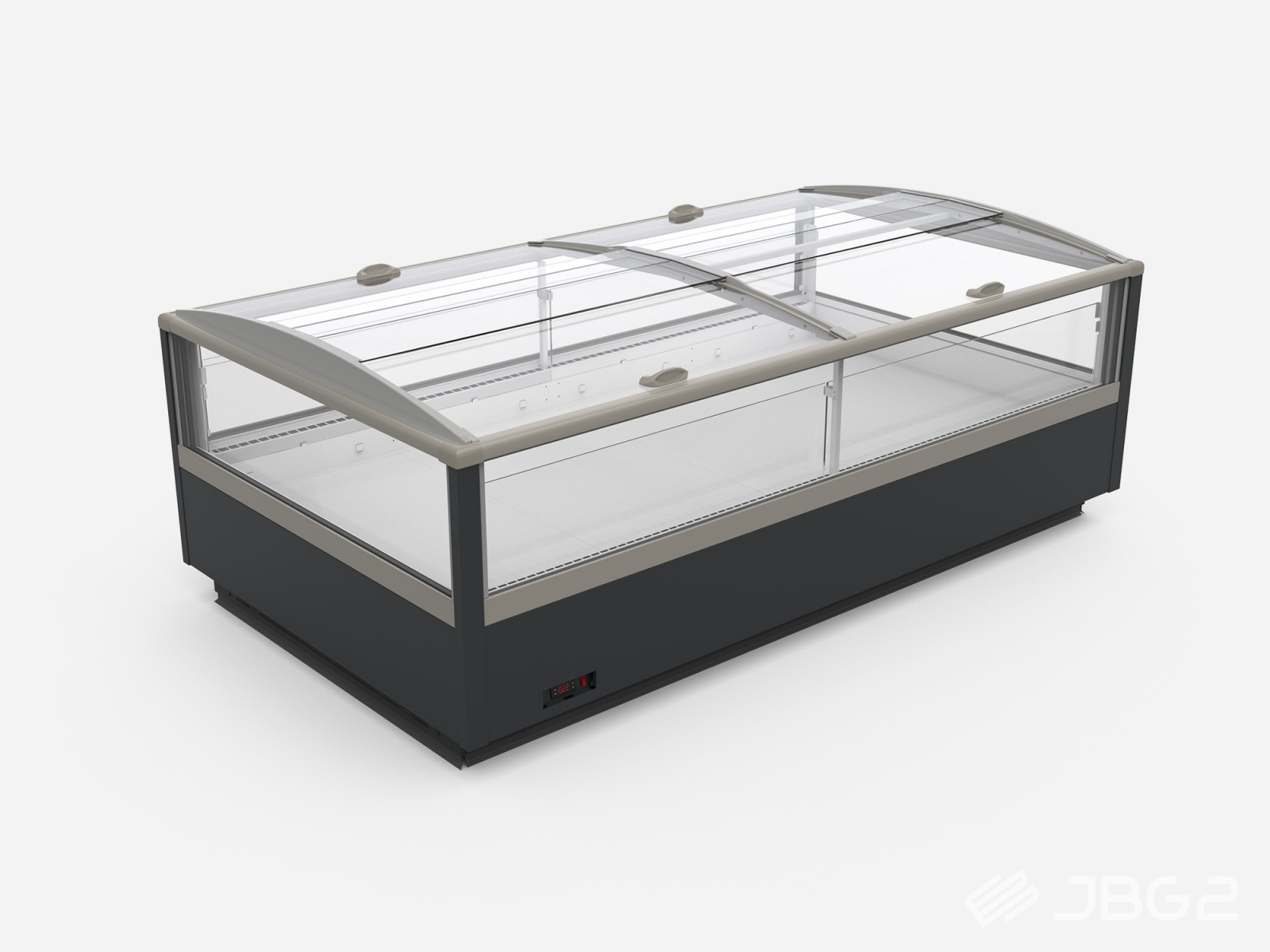

Description
• working temperature: from -25°C to -21°C
• refrigerant: R744
• electrical defrosting
• 2 x NTC temperature probe
• siphoned condensate drains
• thermopane glass
• exposition: zinc-plated steel, powder
coated in white (RAL 9003)
• color of the base – black (RAL 9005)
• WNID-04-1340G sidewalls integrated
Technical data:

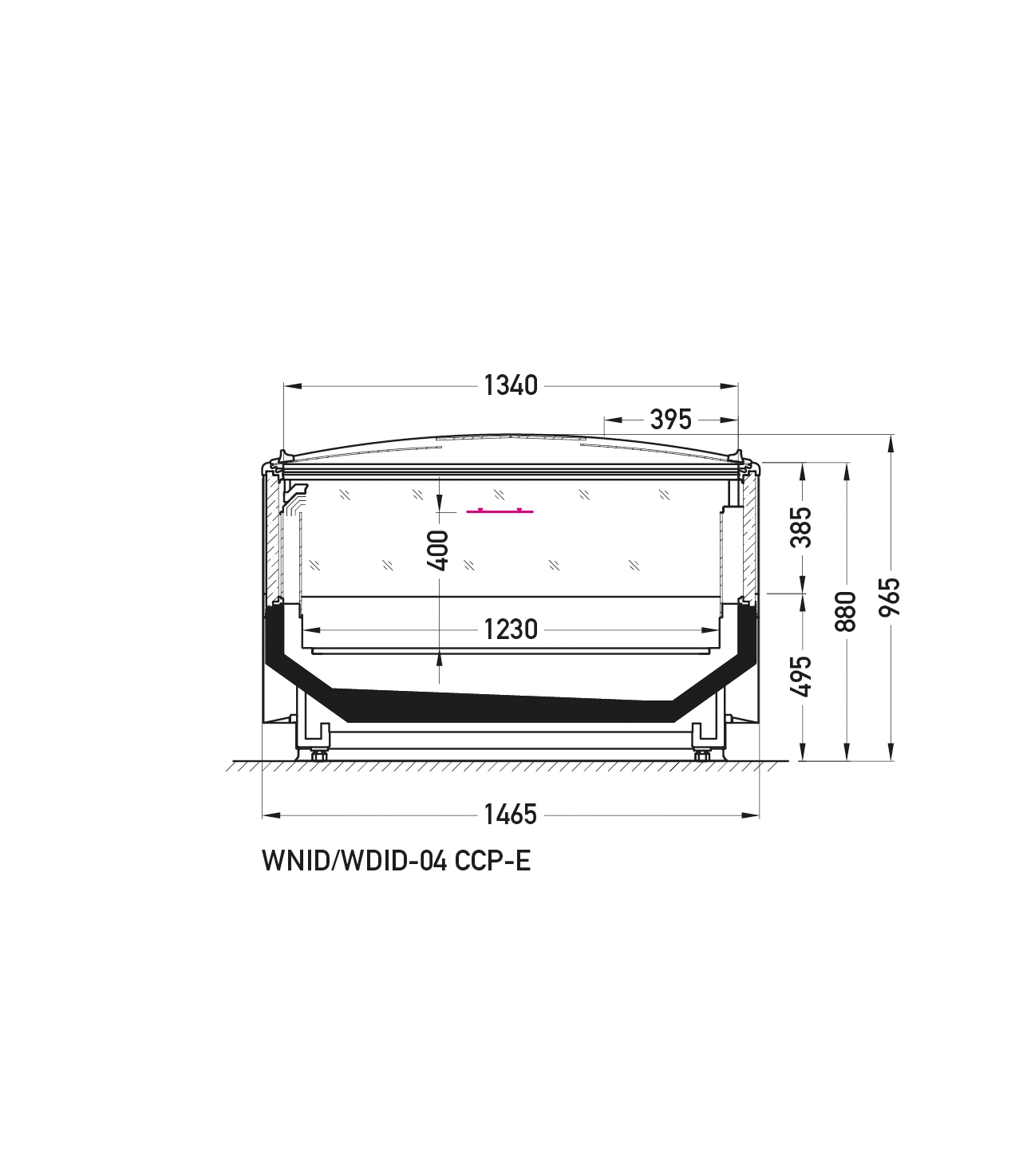

| Modules | 1875 | 2500 | 3750 | 1340G | |
| Width* | [mm] | 1875 | 2500 | 3750 | 1340 |
| Depth* | [mm] | 1465 | 1465 | 1465 | 1060 |
| Height (±10 mm)* | [mm] | 965 | 965 | 965 | 965 |
| Total Display Area (TDA)* | [m2] | 5,33 | 7,16 | 10,74 | 1,74 |
| Net capacity* | [dm3] | 921 | 1228 | 1842 | 462 |
| R744-XXX |  |
|
|
|
|
| R744-CCP | |
|
|
|
|
| R744-CSS | |
|
|
|
|
* for version R744-CCP
Additional settings:
Modules:
1875, 2500, 3750, 1340G
Refrigerant:
R744
Designation of the energy efficiency class is dedicated to a particular products, which are presented on the website. Indicated energy efficiency class depends on a module type, equipment, glassing version and type of a refrigerant. Amendment of each of the said parameters may cause amendment of the energy efficiency class. Contact the producer to acknowledge the energy efficiency class for the product with different parameters to those presented on the website.
